Feller Head (Felling Machine, Log Harvester, Log Harvesting Machine)

General Information:

SUNTON supplies mainly three series of feller head, logging harvester, or felling machine heads. These three series of models have similar functions. The diameter of felling trees ranges from 3 cm to 60 cm, and the diameters of trees ranging from 600 kg to 3,000 kg are grabbed. The corresponding working excavators range from 13 tons to 25 tons. The harvesting feller head can operate in a variety of environments from arctic to tropical woodland. The harvester head works efficiently on both soft and hard trees. It also includes barking of harvested trees.

With years of post-installation experience on various excavators, the quality technology has reached the international standard logging machine efficiency. It has high productivity and handling efficiency in modern wood harvesting. Successful cases: Exported to Russia, Outer Mongolia, Southeast Asia, Hong Kong and other countries with dense jungles, due to the hard technology.

Technical Parameters

Series 1. ALH5

Logging machines are suitable for cutting down eucalyptus trees. Chinese fir. Pine tree (Guangxi. Guangdong. Jiangxi. Sichuan. Fujian, Yunnan and other places to use) [warranty for 12 months]

Series 2. ALH6

The feller harvester head is the best choice for hard and soft woods that require high-quality branch removal. Its powerful drive, combined with its three-roller drivetrain and two shaving razors, provides great productivity in all conditions. The high-pressure hydraulic system is designed to ensure maximum power from the main engine to the final operation. ALH6 high-performance transmission system, easy to operate when dealing with thick branches. The ALH6 performs at its best on excavators ranging from 15 to 20 tons. Technical parameters: ALH6 [12 months warranty]

ALH6 type is a high-capacity, high-power feller head specially designed for the main operation of excavators above 16 tons. It can easily fit all sizes of mainframes. The ALH6 can perform fast felling operations with strong power. Because of the compact design it is light enough to be easily maneuvered during subsequent thinning. ALH6 is suitable for the installation of various brands of excavators at home and abroad. It is easy to install on all kinds of excavators, and can work perfectly with the hydraulic system. Accurate measuring instrument error (0-30MM)

Regarding the carrying equipment of the ALH6, we recommend a crawler or wheeled excavator of 13 to 22 tons as the main power.

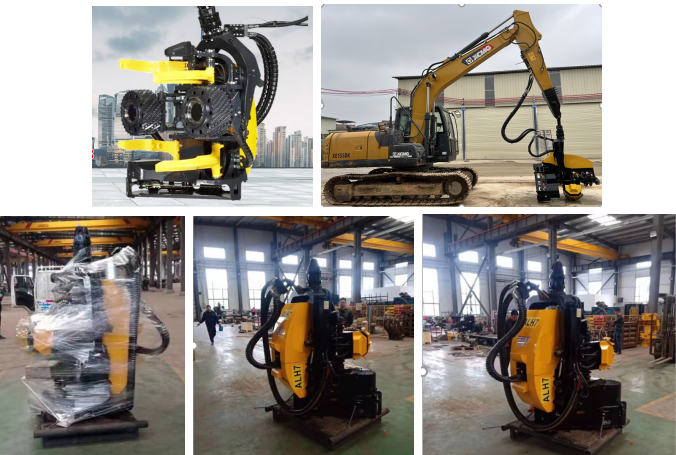

Series 3. ALH7

Equipped with 15-ton excavator or 25-ton excavator main engine.

Technical parameters: ALH7 [12 months warranty]

ALH7 is a feller head for de-branching operations on large-scale forest farms. The harvester head is a combination of all the head features that can create extremely efficient operating efficiency for thick tree branches. And provide the best quality without hurting the skin and the fastest speed of removing branches, which is very suitable for irregular trees. Accurate measuring instrument error (0-30MM)

Most suitable for use with excavators of 15 to 25 tons. And it is the best harvester head for the operation of the poplar forest.

Optional：

√  chain

√  Guides

√  sprocket

√  grease gun

√  random tool
