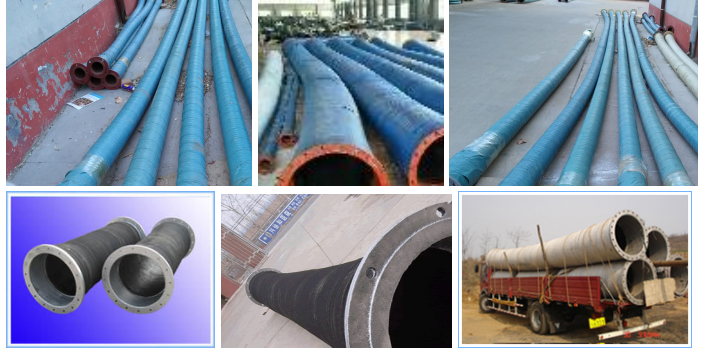

High Pressure Rubber Hoses

High Pressure Rubber Hoses

Main features: reasonable structure design, stable and reliable quality, good media resistance, heat resistance, aging resistance, flexural resistance, high pressure, superior pulse performance;The products are widely used in coal mine, petroleum, engineering machinery, chemical industry, machine tools, hydraulic power, electric power, metallurgy, agricultural machinery and other fields, used for conveying certain pressure and temperature of petroleum-based liquid, water-based liquid, gas and other media, to achieve pressure transmission and medium transmission.

ID（mm）			Fabric Layers			Steel Wire Diameter mm	Connection Length（mm）		Hose Length
Metric Dims.	Tolerance	No. of Layers					Dims.	Tolerance	Dims. m	Tolerance mm
38	1.2	2		3	2		75	10	10	150
51	1.2	3		4	2.6		100	15	10	150
64	1.5	3		4	2.6		100	15	10	150
76	1.5	4		5	2.6		100	15	10	150
89	1.5	4		5	3.2		100	15	10	150
102	2	4		5	3.2		125	20	10	150
127	2	5		6	3.2		125	20	10	150
152	2	5		6	4		150	20	10	150
203	2.5	6		7	5		200	25	10	150
254	2.5	7		8	5		200	25	10	150
305	2.5	7		8	5		250	25	10	150
