Telescopic Pontoon Undercarriage (Extensible Amphibious Undercarriage)

Telescopic Pontoon Undercarriage (Extensible Amphibious Undercarriage)

General Information:

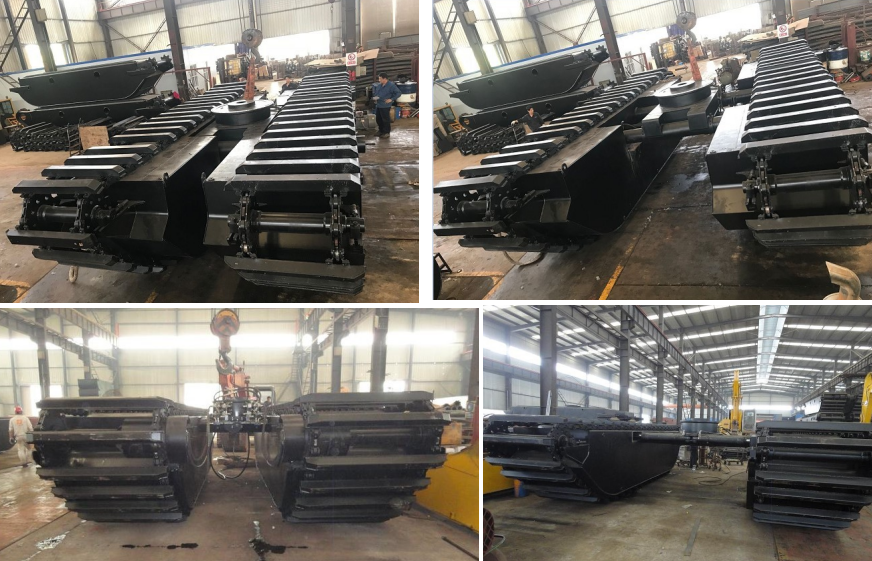

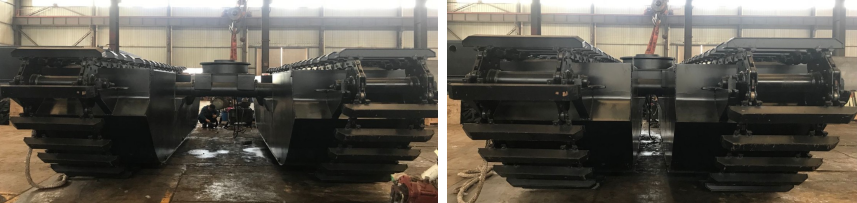

SUNTON EPU series telescopic pontoon undercarriages (Amphibious Undercarriage) are an optional design of the normal standard PU series marsh undercarriages. The extendable undercarriage could retract and extend outward hydraulically. The width of the small size undercarriage could be adjusted to 3m as a minimum. The hydraulic control is totally independent from the existing hydraulic circuit, which could be fully controlled by the operator in the cabin. The design of the extendable pontoons provides the most convenience of transporting the complete machine on trailer without dismantling it into modules. This brings a tremendous saving on logistics.

As per custom’s request, we could provide the manually extendable pontoons, which is also a practical optional choice to meet customer’s budget. It can realize retraction and extension only through a pulling-block pulled by a machine as an excavator. Detail specification will be provided under request.

Technical Parameters: Standard Telescopic Pontoon Undercarriage(Extensible Amphibious Undercarriage)

Model	EPU80	EPU100	EPU120	EPU140	EPU160	EPU180	EPU200	EPU210	EPU220	EPU240	EPU260
Excavator Class Fitted to	7-8tons	8-10tons	10-12tons	12-14tons	14-16tons	16-18tons	18-20tons	18-20tons	20-22Tons	20-24tons	20-24tons
Undercarriage Mini./Max. Width, M	2.5-3.5	2.6-3.64	3-4.5	3.2-4.5	3.5-5.2	3.4-5.1	3.5-5.2	4.2-6	4.2-6	4.2-6	4.2-6
A Pontoon Length, мм	6200	6500	6500	7 100	7 700	8 100	8 500	8 500	9 400	10 200	10 200
B Undercarriage Width, мм	3100	3640	4500	4500	5200	5100	5200	6000	6000	6000	6000
C Pontoon Height, мм	1350	1600	1700	1 700	1 700	1 700	1 700	1700	1 700	1 700	1 800
D Pontoon Width, мм	1100	1250	1460	1 500	1 560	1 500	1 560	1800	1800	1800	1800
E Clearance, мм	800	1000	1000	1000	1000	1000	1000	1100	1100	1100	1100
F Gauge, мм	2000	2540	2660	2740	2760	3700	2760	3040	3040	3040	3040
Track Pad Length мм	800	800	800	800	800/1000	800/1000	800/1000	1300/1400	1300/1400	1300/1400	1300/1400
Strands of Track Chain	2	2	2	2	2	2	2	3	3	3	3
Hydraulic Travel Motor	2хDoosan TM18VC	2хDoosan TM18VC	2хDoosan TM18VC	2хDoosan TM18VC	2хDoosan TM40VC	2хDoosan TM40VC	2хDoosan TM40VC	2хDoosan TM60VC	2хDoosan TM60VC	2хDoosan TM60VC	4хDoosan TM40VC
Total Buoyancy, Metric Tons	8	12.7	16.5	19.5	22	23	25	29	33	37	40
Max. Payloads, Metric Tons	4	3	4.5	6.5	85.	9	10.5	9.5	13	16	18.5
Total Weight Metric Tons	8	9.5	11.7	12.5	13.2	13.6	13.95	18.9	19.6	20.2	20.5

Technical Parameters:Heavy Duty Telescopic Pontoon Undercarriage(Extensible Amphibious Undercarriage)

Model	EPU300	EPU330	EPU360	EPU380	EPU380-1	EPU390	EPU400	EPU420	EPU450
Excavator Class Fitted to	24-47tons
Undercarriage Mini./Max. Width, M	5-7.5
A Pontoon Length, мм	11 000	11 000	11 000	11 000	11 000	11 000	11 000	11 000	11 000
B Undercarriage Width, мм	6800	6800	6800	6800	6800	6800	6800	6800	6800
C Pontoon Height, мм	1 800	2000	1 800	2 000	2000	2 000	2200	2200	2200
D Pontoon Width, мм	2 200	2 200	2 200	2 200	2 200	2200	2200	2200	2200
E Clearance, мм	1100	1100	1100	1100	1100	1100	1100	1100	1100
F Gauge, мм	3340	3340	3340	3340	3340	3340	3340	3340	3340
Track Pad Length, mm	1500-1700	1500-1700	1500-1700	1500-1700	1500-1700	1500-1700	1500-1700	1500-1700	1500-1700
Strands of Track Chain	3	3	3	3	3	3	3	3	4
Hydraulic Travel Motor	2хDoosan TM60VC	4хDoosan TM40VC	4хDoosan TM60VC	2хDoosan TM70VC	4хDoosan TM40VC	4хDoosan TM60VC	4хDoosan TM40VC	4хDoosan TM60VC	4хDoosan TM60VC
Total Buoyancy, Metric Tons	54	54	54	62	62	62	70	70	70
Max. Payloads Metric Tons	29	28	28	36	35	35	41	41	33
Total Weight, Metric Tons	24	25	25	25	26	26	27	27	345
