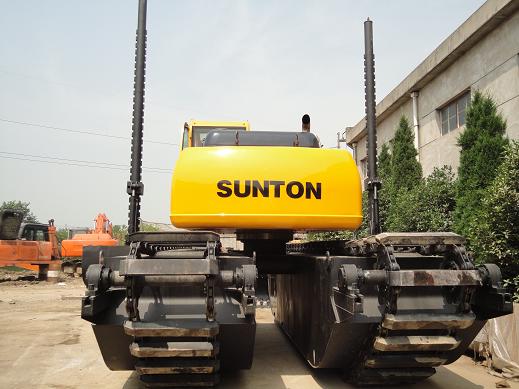

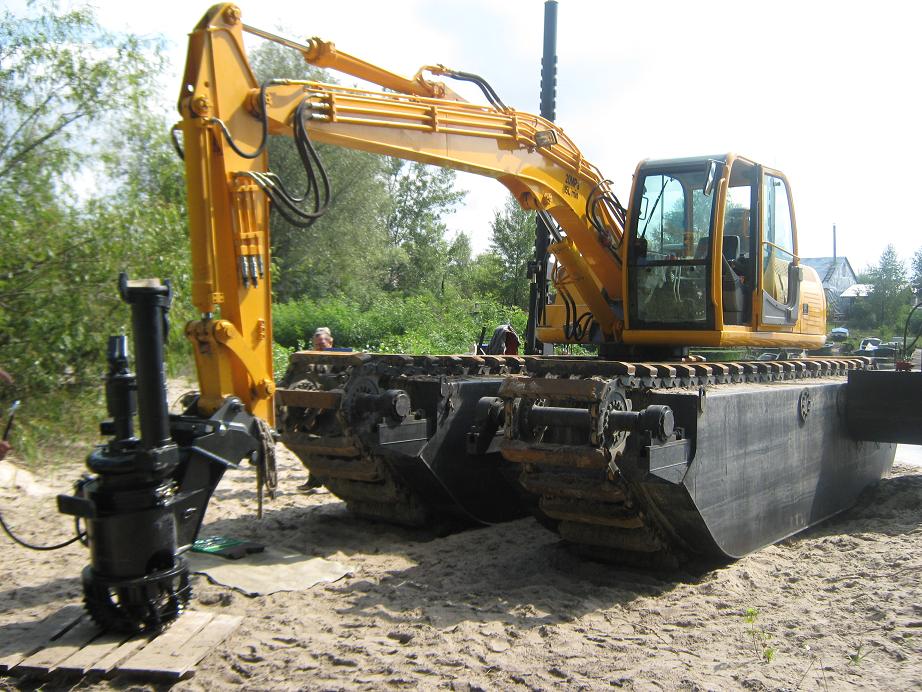

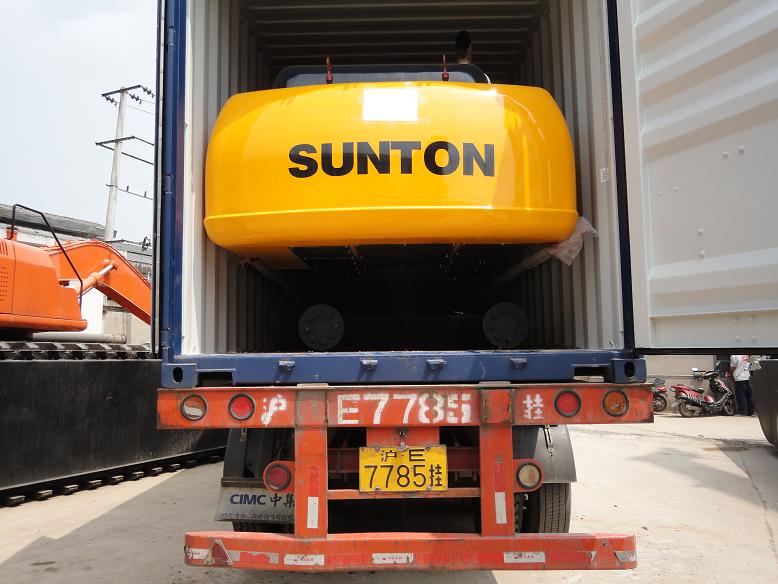

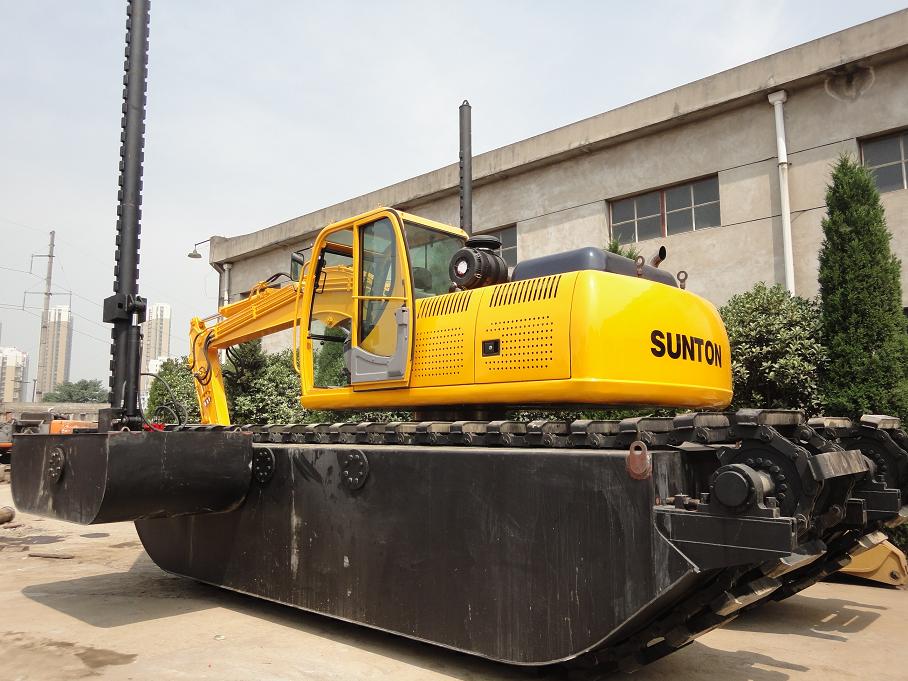

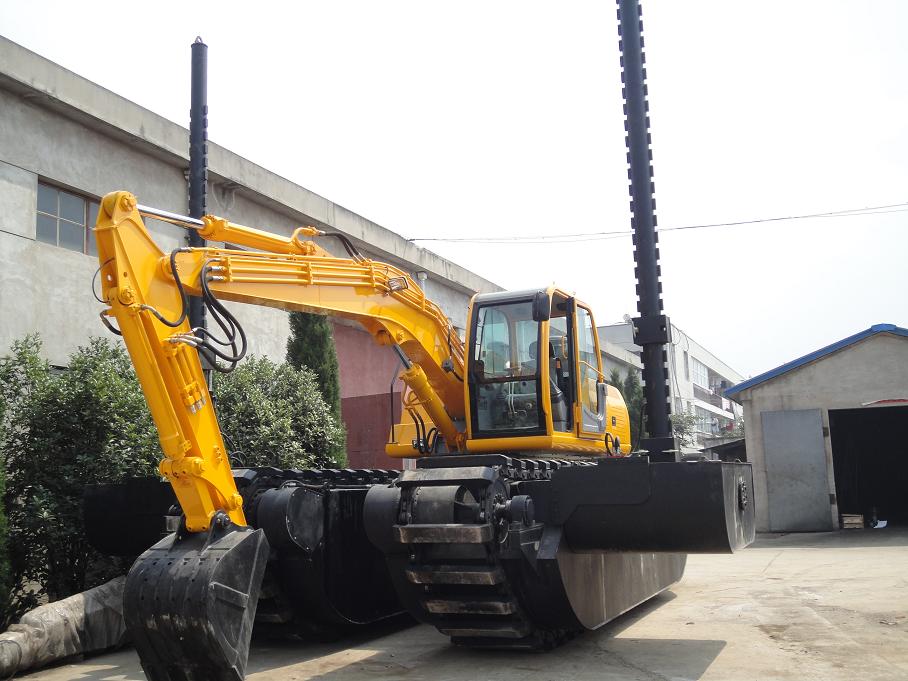

SUNTON SE200 Marsh Excavator was delivered to Ukraine Market on June 24, 2012. Main specifications are as below:
1． Main Configurations:
Item | Part | Model | Manufacture | Specifications | Origin |
1 | Engine | J-4B115-EE-K | CUMMINS | Rated Output: 115HP/2200rmp | |
2 | Main Pump | K3V63 | JEIL Hydraulic | Displacement: 2×63ml/r | |
3 | Multiport Value | AV170 | Parker | Working Pressure 30MPa | |
4 | Tavel Motor | MBEB262 | Doosan | - | |
5 | Swing Motor | JMF-151-01-VBR-RP-17 | JEIL Hydraulic | - | |
6 | Bucket | 0.35CBM | SUNTON | 0.35CBM |
2． Main Specification
1) Operation Weight: Approx. 19.8MTS
2) Weight of upper carriage: 5.8MTS=1x5.8MTS (without central structure)
3) Weight of Undercarriage: 14MTS=2X6.2MTS(pontoon)+1X1.8MTS(central structure and beams)
4) Size of complete machine for Transport: 11mx3.7mx3.65m
5) Max. digging depth with bucket: 4M
6) Max. digging radius with bucket: 8.2M
7) Total length of boom and stick: 7.2M
8) Total buoyancy: 23MTS, Max. load of upper carriage: 6MTS.
9) Bucket Capacity: 0.35CBM
10) Manpower operterated spuds and side pontoons
11) Side pontoon size: 2.2mx1.25mx0.7m
12) Spuds size: Φ180mmx10mmx6000mm
13) Internal Diameter of holes for side pontoon: Φ255mm, steel beam: Φ245mmx12mmx2750mm.
14) Weight of side pontoons and spuds: Approx. 2 tons.
